Urban Infill House,

Unknown type in Hackney Wick

Completed: 2021

Architect: Alexander Hills Architects


About this home:

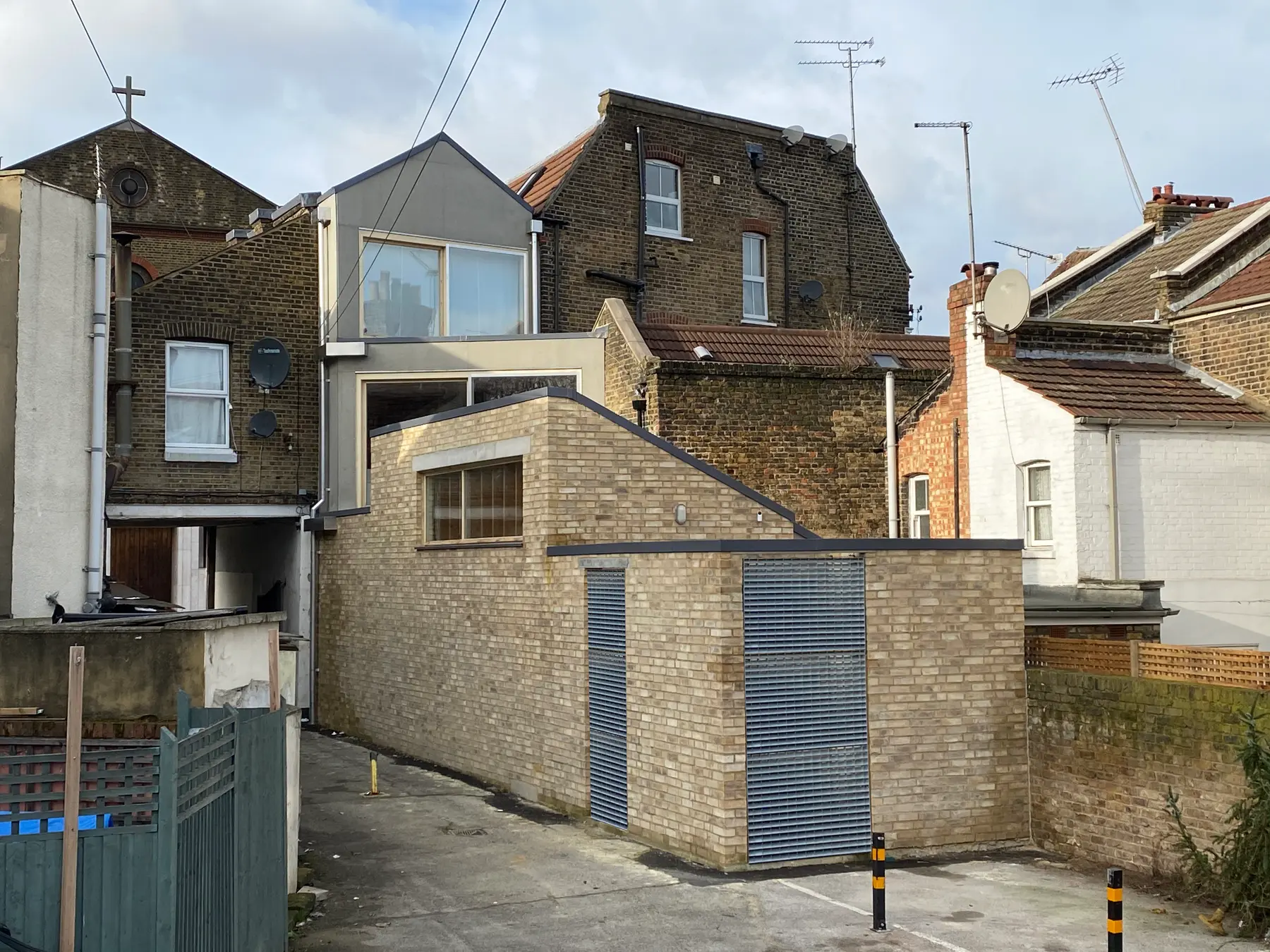

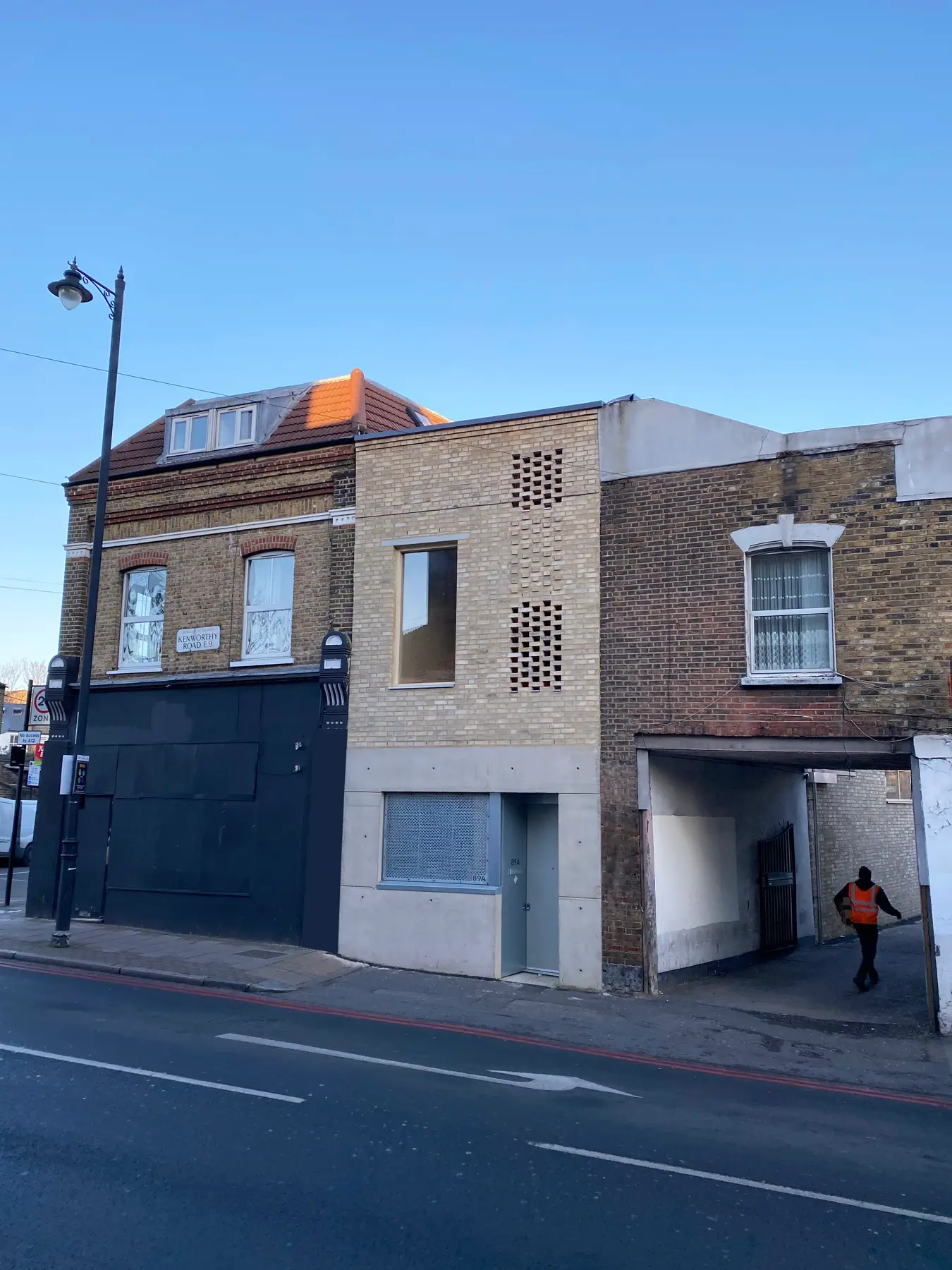

The site was extremely long and thin - 2.7m at its thinnest - and we were situated off a busy red route - so any form of road closure was prohibited. We made this our design driver, forming a 'hard' street frontage of brick sat on a concrete and steel plinth, contrasting with a 'soft' timber interior running to the private yard at the back. This organised spaces from the communal to the busy street with the private to the quieter rear, creating blocks of different functions in sequence - much like the hull of a ship. The result presented two distinct facades that stitched the house into the local terrace, the front appearing as two storeys whilst the rear terraced out to create three.


Features:

Individual Self-Build icon

Individual Self-Build

Timber Frame icon

Timber Frame

Clay Render / Plaster icon

Clay Render / Plaster

MVHR icon

MVHR

Air Source Heat Pump icon

Air Source Heat Pump

Officer Delegated Decision icon

Officer Delegated Decision

Urban Infill icon

Urban Infill

Challenging Access icon

Challenging Access

First Home icon

First Home

Airtight Design icon

Airtight Design

Low Cost Construction icon

Low Cost Construction


Planning Insights:

11 months at planning

We withdrew our initial application in October 2016 to re-design it, submitting a pre-app in May 2017, and then gaining a second full application in September 2017.


Project Challenges

The narrow width of the site

This influenced how we considered the design: organising the space in an enfilade manner - buffering the private rear to the public front with storage space - and creating the thinnest walls possible

Sequence of the build

Because access was an issue, we had to organise the construction in clear stages: first, the piles (to avoid underground pipes and footings), RC slab, RC plinth, steel frame, timber infill, and floors

Fit-out

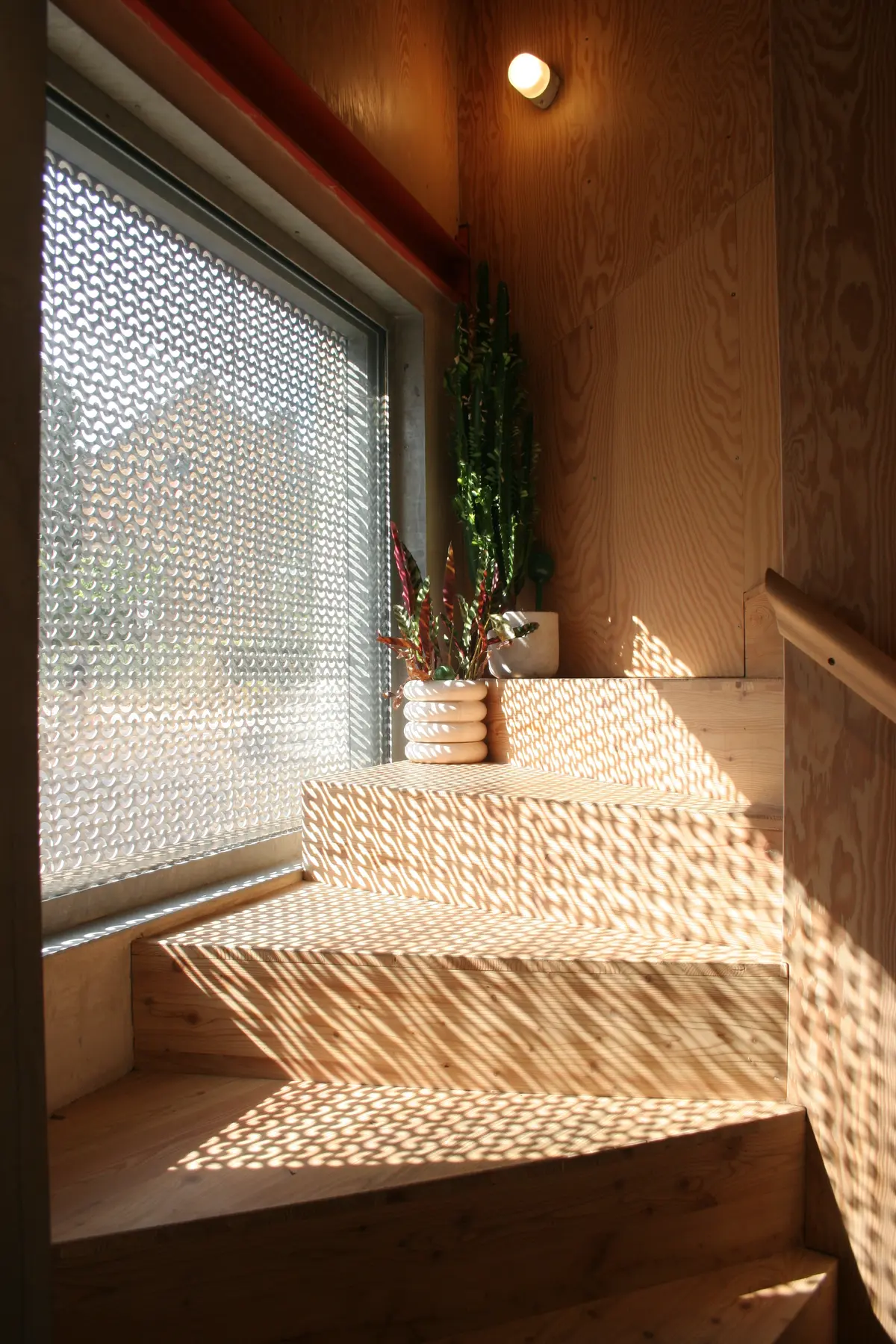

Once the shell and core was completed we organised individual parts of the fit-out: CNC'ing the stairs in Tiley board, facing the IKEA kitchen in pine, building the fitted wardrobes in Radiata ply.
